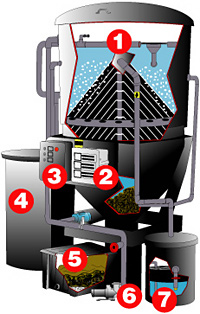

1.
Clarifier
Tank:
300 or 600 gallon cone shaped
clarifier settles solids. Free-floating oils are
removed via a suspended oil skimmer. Model
WCL-30D-0M10 has 425 sq ft. of oil coalescing
media to help capture mechanically emulsified
oil.
2.
Control
Panel:
This NEMA-4 rated control box
makes the equipment simple to operate and is
easily accessible. (Standard on the
WCL-30D-0M10)
3.
Corona
Discharge Ozone Injection:
For order
control, the WCL-30D-0M10 comes with a corona
discharge ozone generator. The ozone generator
has an output of 1.0 grams per hour of ozone for
a “quick kill” of live bacteria on
contact.
4.
Optional
Treated Water Holding Tank
Part
#855-0015 (80 gal. tank) or Part #855-0016 (165
gal. tank):
Treated water holding tank
for transferring treated water to the next
process or point of discharge.
5.
Solids Separation
Chamber:
Solids
from the wastewater stream settle at the base of
the clarifier tank. With the opening of a single
valve, solids are easily dropped into a bag
filter in the solids separation chamber for
effective capture and easy disposal. The bag
filter is suspended on the de-watering tray with
drainage returning to the in-ground collection
pits.
6.
Surface
Mount Sump Pump:
Untreated wash-water is
introduced into the system via a ¾ H.P. surface
mount sump pump (included with unit)
7.
Oil
Decanter:
Oil skimmed from the surface of
the clarifier tank is captured in a conveniently
located oil decanter. Oil can be removed easily
for appropriate disposal.
|
